The Peak T5 has a torque pedal assist sensor that works in tandem with the rider for a more energy efficient ride (saving battery power). The 1×11 wide range drive train eliminates the front derailleur streamlining the bike and decreasing weight. These features powered by a 500W 48V power system with a top speed of 40Km/h (25 MPH) make the Peak T5 an ideal choice for trail riding.

Description

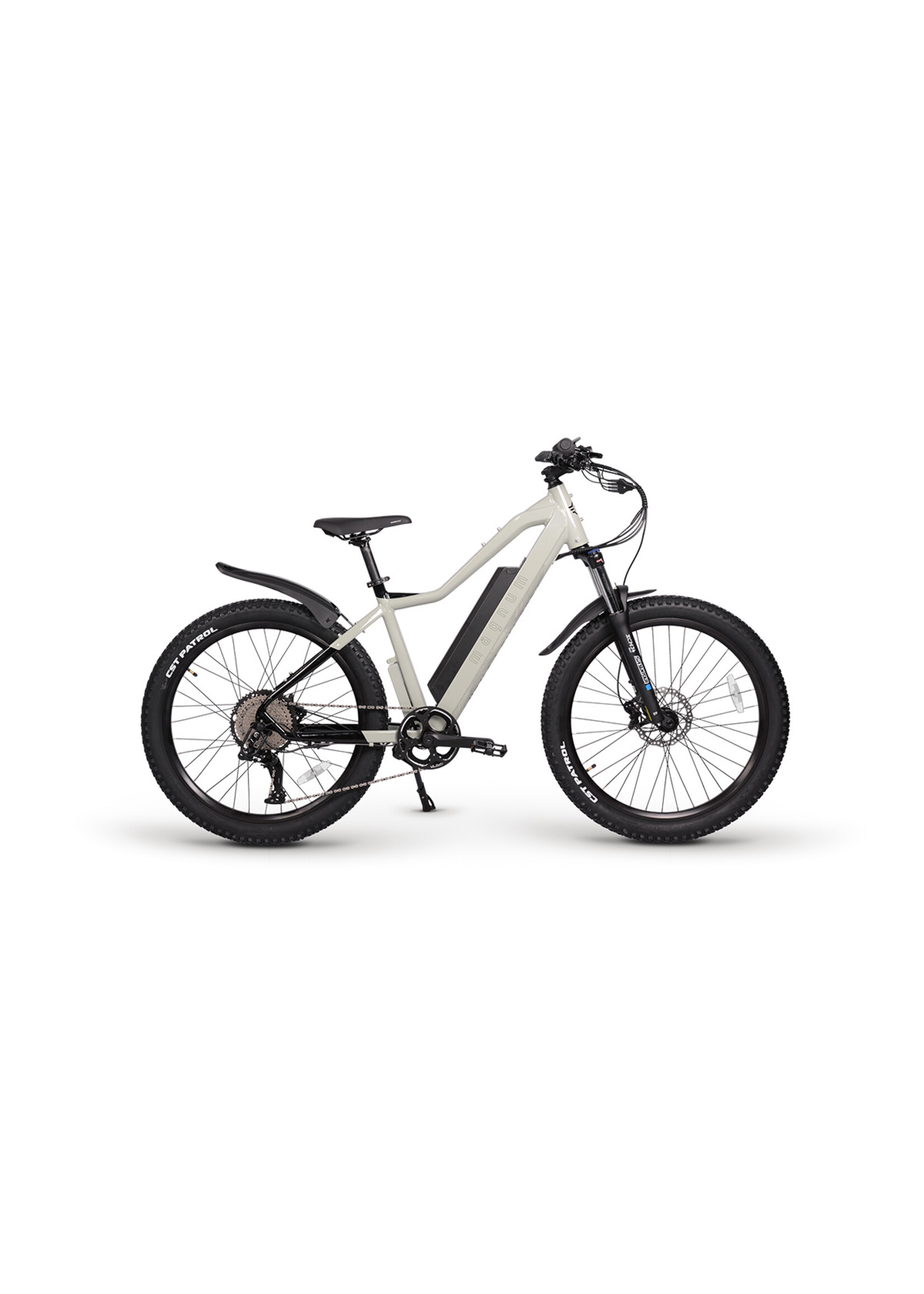

Model: Magnum Peak T5
Body Position: Forward
Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty: One Year Limited Warranty
Max Load: 265lbs

ELECTRONIC DETAILS

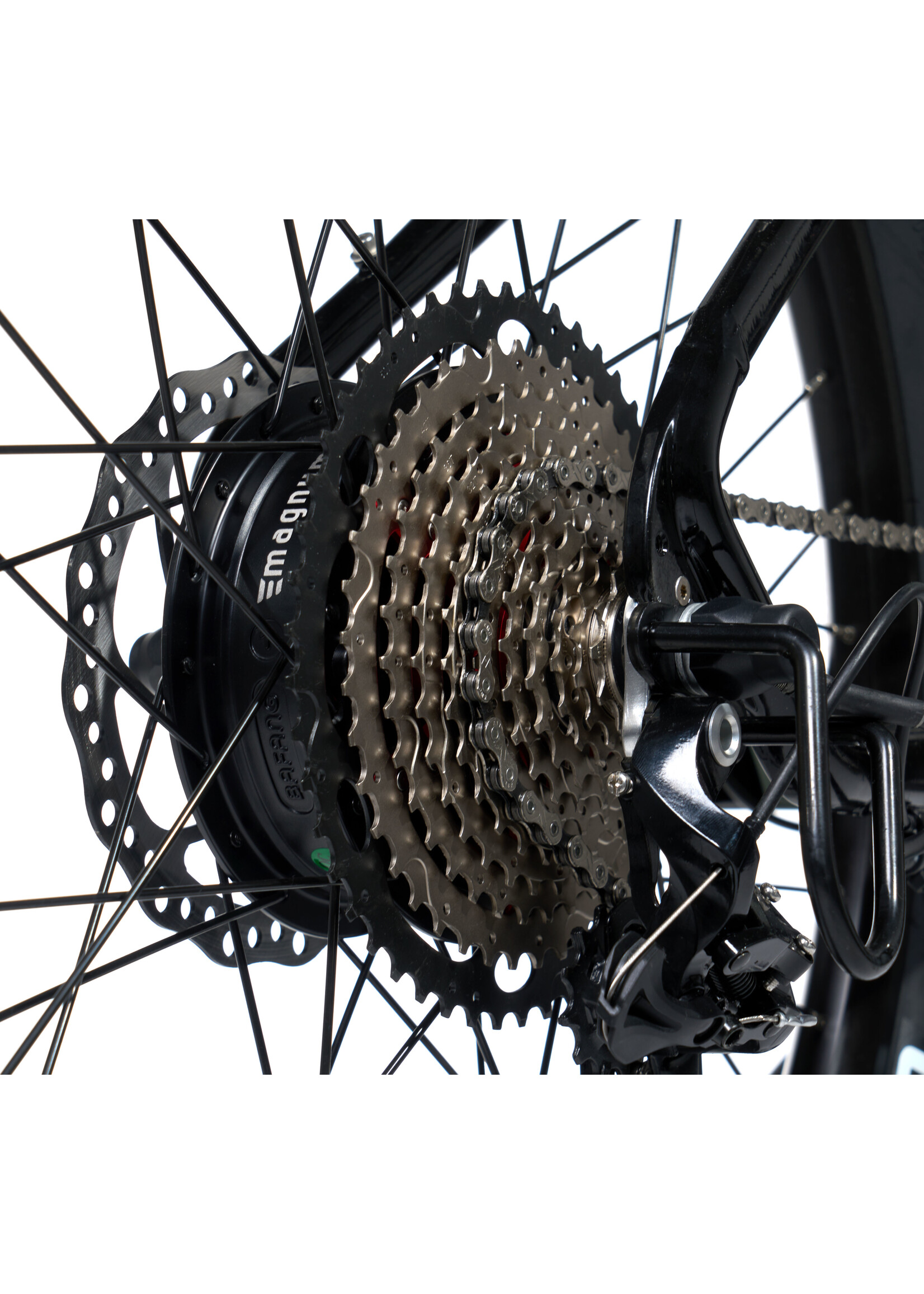

Motor Type: Bafang Rear Hub Motor
Motor Output: 48v 500w
Battery Voltage / Amp Hours / Watt Hours: 48v / 15Ah / 720Wh
Battery Chemistry: Lithium-Ion
Estimated Charge Time: 7.5 Hrs
Estimated Min And Max Range: (40 To 60 Miles) 66 to 95km (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type: Magnum Branded Velofox, 3.5″ Diagonal, Fixed, Monochrome, Backlit LCD
Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes: Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed: (25mph) 40km/h With Pedal Assist, (20mph) 32km/h Throttle Only

BICYCLE DETAILS

Total Weight: 60lbs
Battery Weight: 9lbs
Frame Type: High Step
Frame Material: 6061 Aluminum Alloy
Fork Details: Sr Suntour XSM34 Boost
Attachment Points: Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses, Headtube Bosses
Gearing Details: 11 speed Rear Derailleur, 11-50t Rear Cassette
Shifter Details: 11 speed
Cranks: Prowheel 42t chainring 170mm crank arms
Pedals: Wellgo Aluminum Platform
Stem: 60 mm Length, Aluminum Alloy
Brake Details: 4-Piston Hydraulic Brakes
Lights: Integrated front light controlled by display.
Grips: Ergonomic Black Rubber
Saddle: Selle Royal Essenza+
Seatpost / Seatpost Dimensions: Promax, 30.4
Fenders: Front & Rear MTB-style
Rims: 27.5″
Tires: CST Patrol, 27.5″ X 2.8″
Wheel Size: 27.5″
